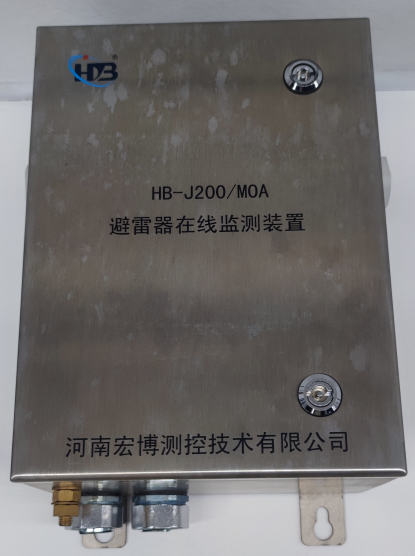

HB-100P Surge Arrester Online Monitoring
The entire device consists of three parts: the signal unit, the transmitter unit, and the receiver unit.
2.1.1 Signal Unit
Installed in series with the low-voltage end of the arrester, it collects leakage current and lightning strike signals from the arrester.
2.1.2 Transmitter Unit
Connected to the signal unit, it processes the signal and sends it to the receiver unit. The transmitter terminal has the function of identifying lightning-induced action signals and can send them to the receiver terminal for recording.
2.1.3 Receiver Unit
Receives, stores, and displays data, and uploads the data to the main station through FTU/ETU/integrated terminal.
Lightning Arrester Online Monitoring Device (HB-100P) real-time monitors the operating status of lightning arresters, records parameters such as lightning strike time, frequency, leakage current, and equipment temperature, and periodically transmits data back to the backend system. When abnormal operation of the lightning arrester is detected, it will actively notify maintenance personnel, displaying the specific location of the damaged arrester, enabling maintenance personnel to locate and resolve the fault promptly, ensuring the safety of users' lives and property.
Specifications
Electrical Parameters
- Rated Voltage
- AC220V±20%
- Operating Frequency
- 50Hz±5%
Working Environment
- Normal Operating Temperature
- －20℃ to ＋60℃
- Extreme Operating Temperature
- －25℃ to ＋70℃
- Storage and Transportation Temperature
- －25℃ to ＋70℃
- Relative Humidity
- Less than 90%
Reliability
- Leakage Current Monitoring Range
- 400μA -1000μA
- Leakage Current Monitoring Error
- ＜2% or ±3μA
- Insulation Strength
- 2.5kV
- Vibration Response Severity Level
- Level I
- Vibration Durability Severity Level
- Level I
- Shock Response Severity Level
- Level I
- Shock Durability Severity Level
- Level I
- Impact Severity Level
- Level I
Other Parameters
- Protection Rating
- The protection rating of the transmitting terminal shall be no less than IP66; the protection rating of the receiving terminal shall be no less than IP54
- Equipment Power Consumption
- The power consumption of the receiving terminal should not exceed 5W; the standby current of the transmitting terminal should not exceed 15μA; the current of the transmitting terminal during data transmission should not exceed 30mA
