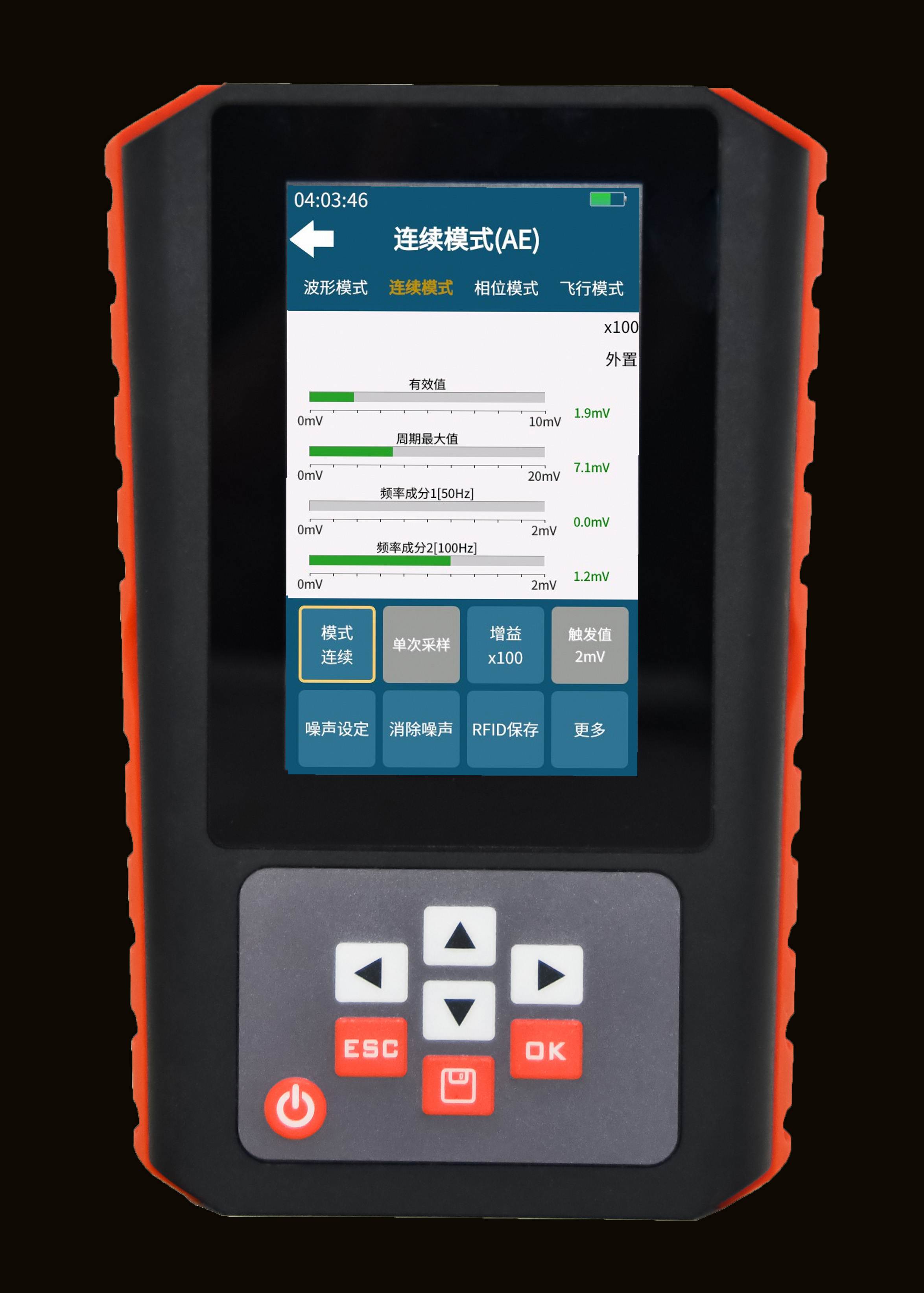

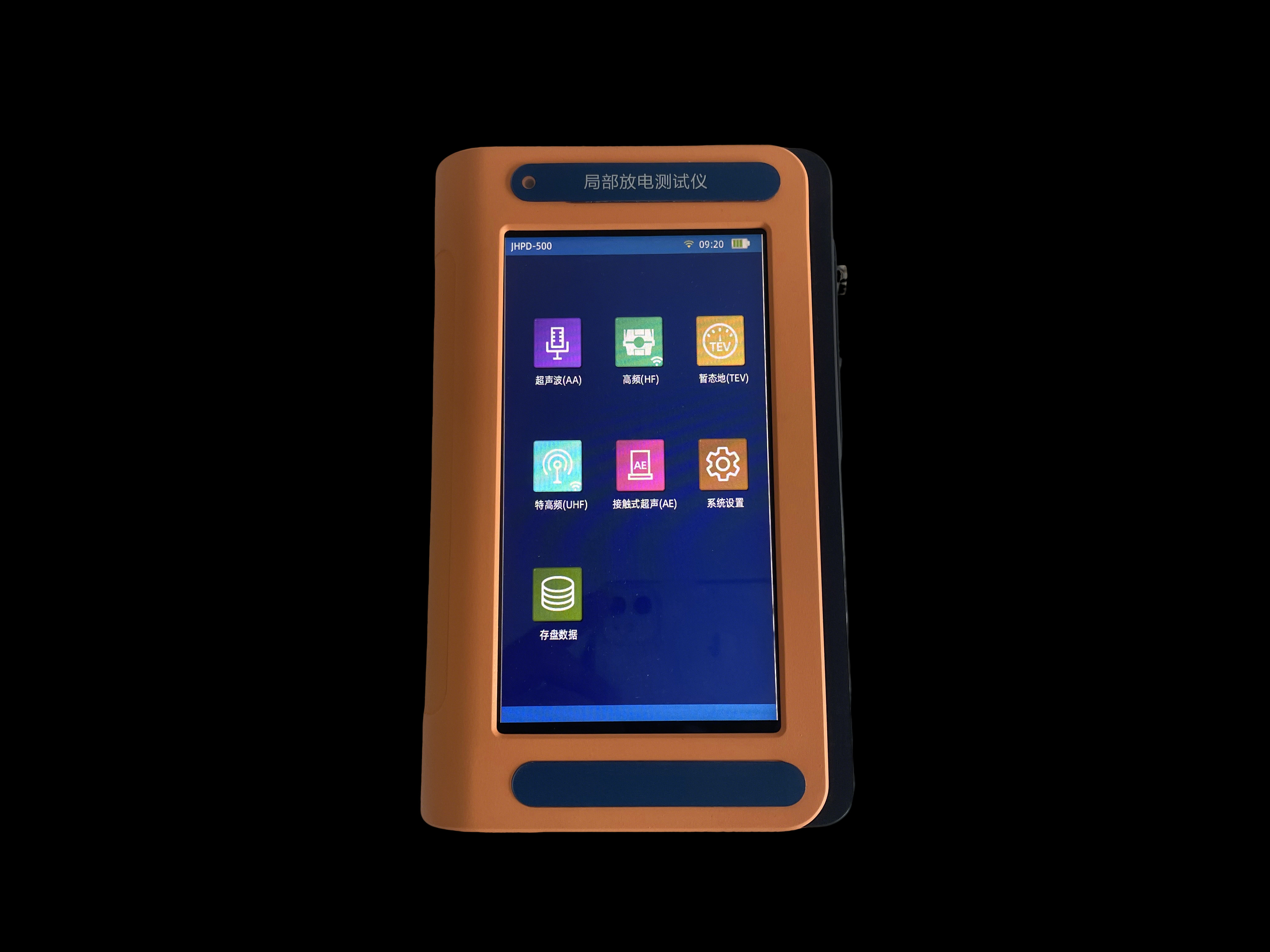

HB-C80 Multi-Function Partial Discharge Patrol Meter
1. Provides various analysis methods including amplitude spectrum, period spectrum, phase spectrum, waveform spectrum, PRPS/PRPD spectrum, etc., effectively determining the amplitude, type, and severity of partial discharge.
2. Multiple phase synchronization methods are available, including internal synchronization, wireless synchronization, and optical synchronization.
3. Supports intelligent power frequency synchronization function, ensuring that the detection spectrum is synchronized with the grid frequency.
4. Equipped with a three-color (yellow, green, red) indication function to indicate the severity of discharge.
5. The data analysis software has a spectrum library management function, which can classify and organize case spectrum libraries, perform unified analysis and management of real-time monitoring, and intuitively observe changes in partial discharge signals.
6. Portable design, convenient for on-site testing or laboratory use.
The instrument is a multifunctional handheld device for electric charge detection, based on methods such as ground voltage, ultrasonic, ultra high frequency, and high frequency current, for testing partial discharge conditions in power equipment, which can effectively evaluate the partial discharge conditions of power equipment. It is applicable for partial discharge detection in power equipment such as transformers, reactors, GIS, ring main units, switchgear, high voltage cables, and overhead lines.
Specifications
Host Parameters
- Display
- 4.3 inch 480 x 800 HD screen
- Memory Capacity
- 8 G B
- Power Supply
- Built-in rechargeable lithium battery, battery life of approximately 12 hours
- Working Environment
- Temperature: -5 ℃～55 ℃; Humidity: 0～90 %

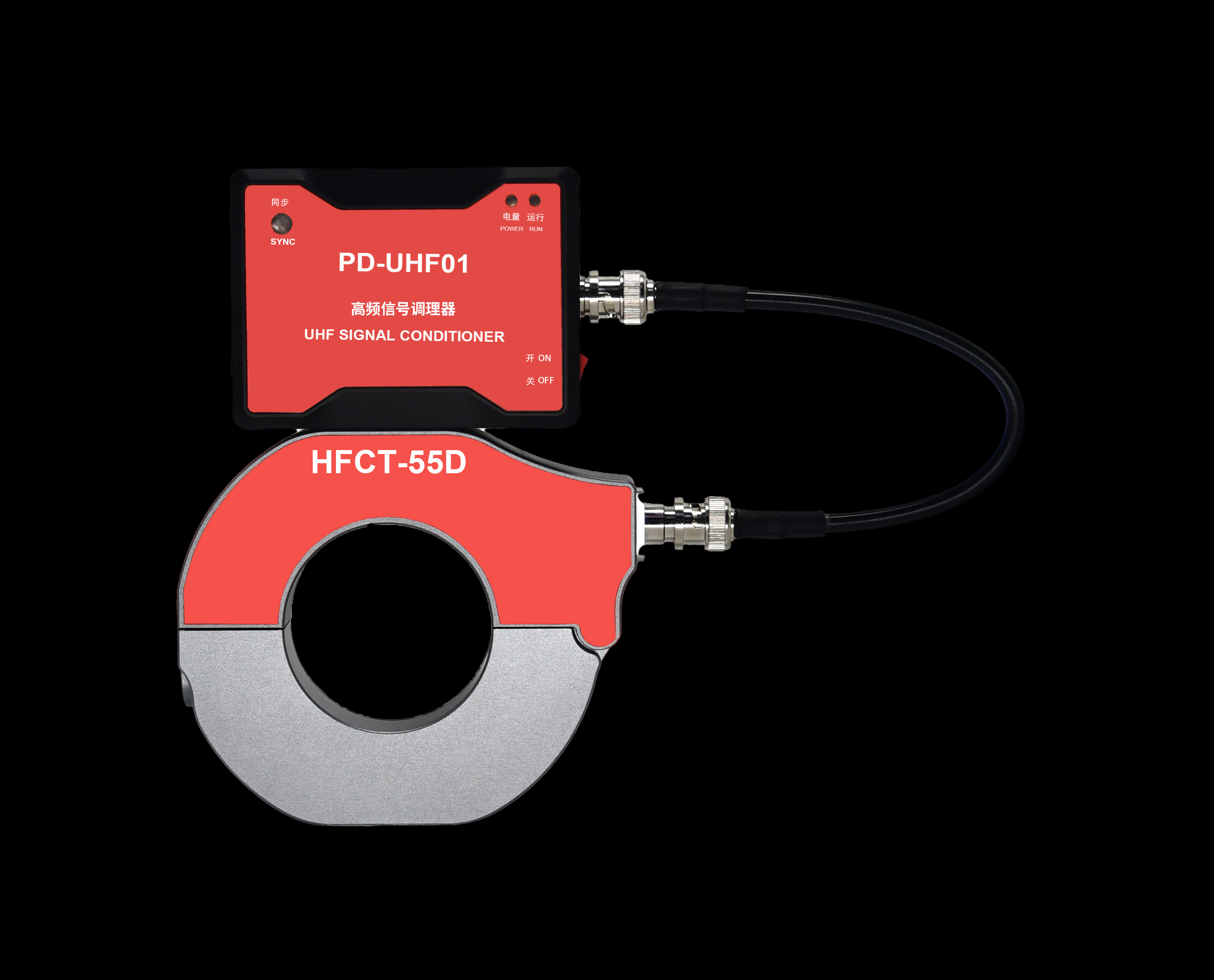

High-frequency Current Detection
- Detection Bandwidth
- 500 KHz-50 MHz
- Dynamic Range
- 0~80 dB
- Measurement Accuracy
- 1 d B
- Measurement Error
- ±1 dB
Ultrasonic Detection

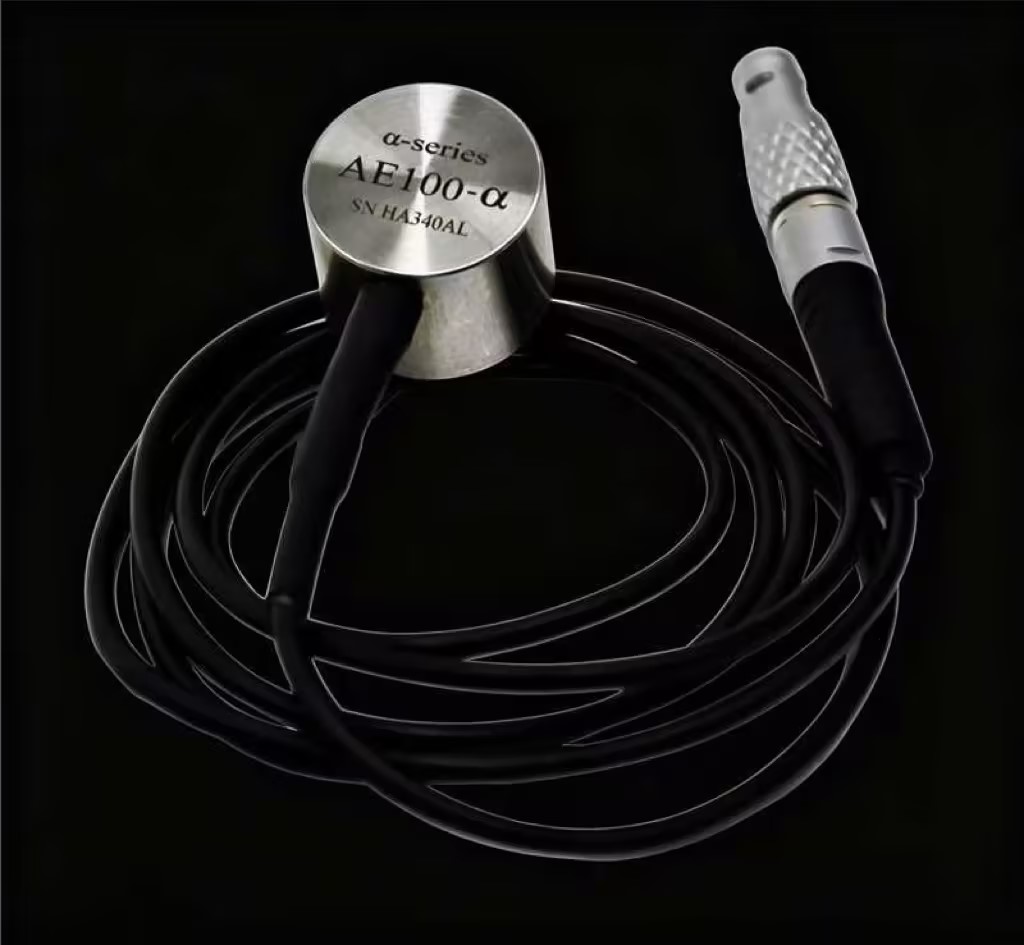

- Contact-type ultrasonic frequency range
- 20 kHz-300 kHz
- Non-contact ultrasonic peak frequency
- 40 kHz
- Detection sensitivity
- 0.1 mV
- Measurement range
- 0.1 mV～1 V
- Gain
- Equipped with gain ×100, ×10, ×1 three-step adjustable

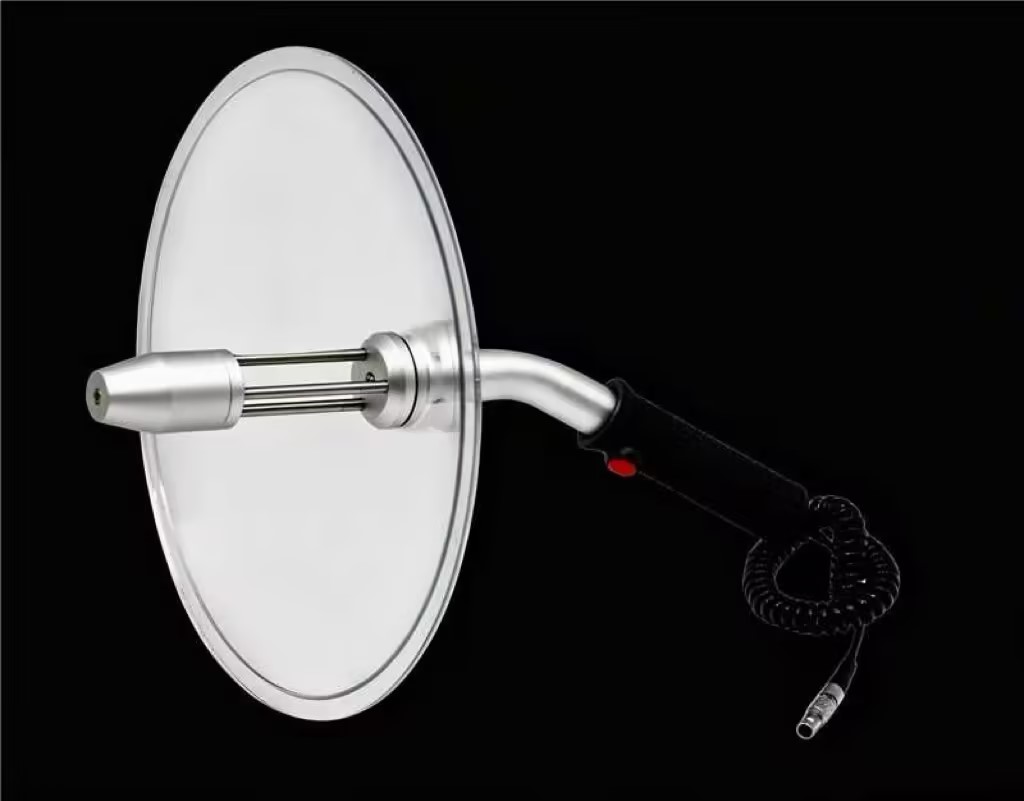

Remote ultrasonic lens (optional)
- Remote ultrasonic peak frequency
- 40 kHz
- Test distance
- 0~50 meters
Ultra high frequency detection
- Frequency range
- 300 MHz ~1500 MHz
- Measurement range
- 0~80 dB
- Measurement accuracy
- 1 dB
Transient Ground Voltage Inspection
- Frequency Range
- 3 MHz ~100 MHz
- Measurement Range
- 0~80 dB
- Measurement Accuracy
- 1 dB
- Measurement Error
- ±1 dB
