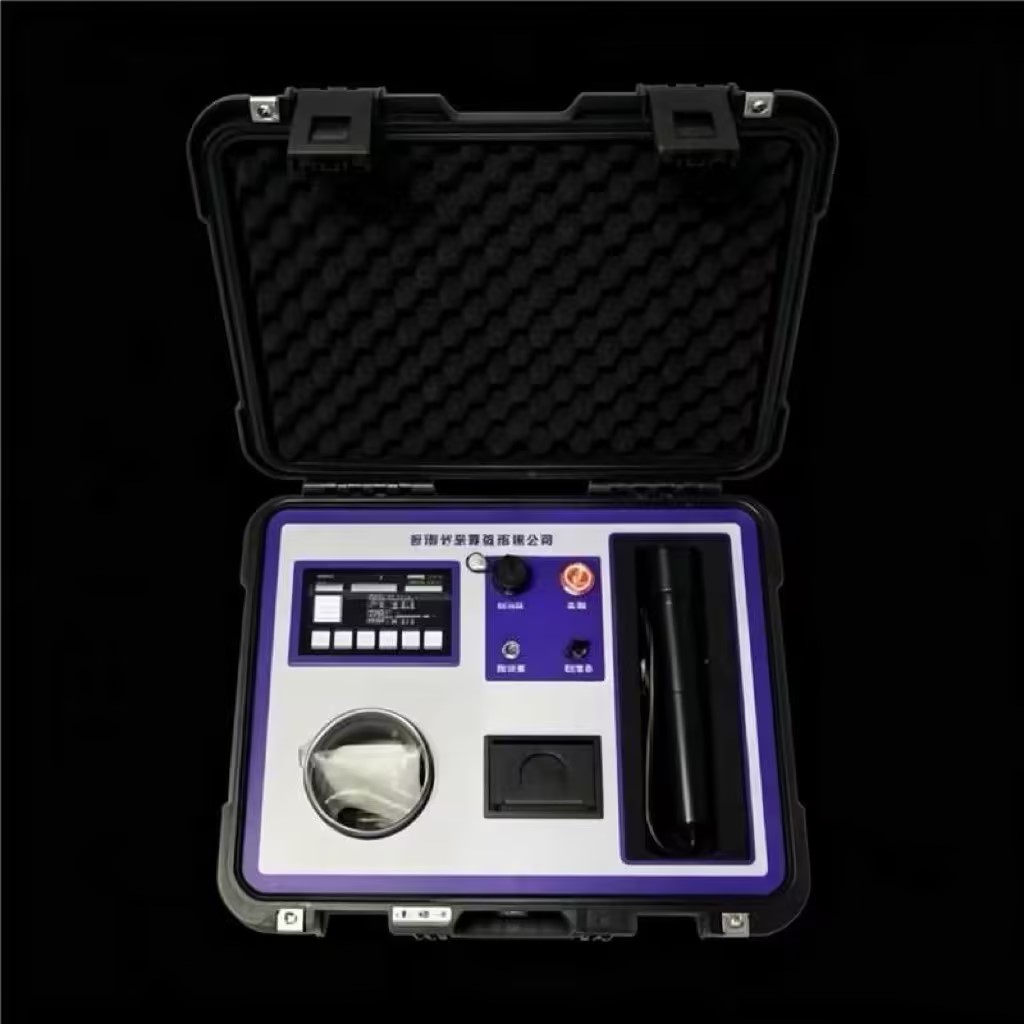

HB-FS10 Insulator Dust Density and Salt Density Tester
Adopting new laser detection technology, this method combines salt density testing and ash density testing into one, simplifying the process of insulator pollution detection and greatly improving work efficiency. It features high measurement accuracy, wide range, convenient portability, and simple operation, making it very suitable for use in inspection sites and laboratories.
The Insulator Salt Deposit and Dust Deposit Tester is a specialized measuring instrument developed for pollution flashover prevention testing in power systems. It is used to measure the equivalent salt deposit density and dust deposit value on the surface of insulators, and can also measure the conductivity and temperature of solutions. It is very suitable for use in field inspections and laboratories.
Specifications
Ash density measurement range
- Ash density measurement range
- 0.01—4.5mg/cm2
Ash density accuracy
- Ash density accuracy
- ±2%
Salt density measurement range
- Salt density measurement range
- 0.01—3.0mg/cm2
Salt density
- Salt density accuracy
- ±1%
Conductivity
- Conductivity measurement range
- 0～20000μs/cm
- Conductivity accuracy
- ±1%
Temperature
- Temperature measurement range
- 0-100℃
- Temperature Accuracy
- ±0.1℃
