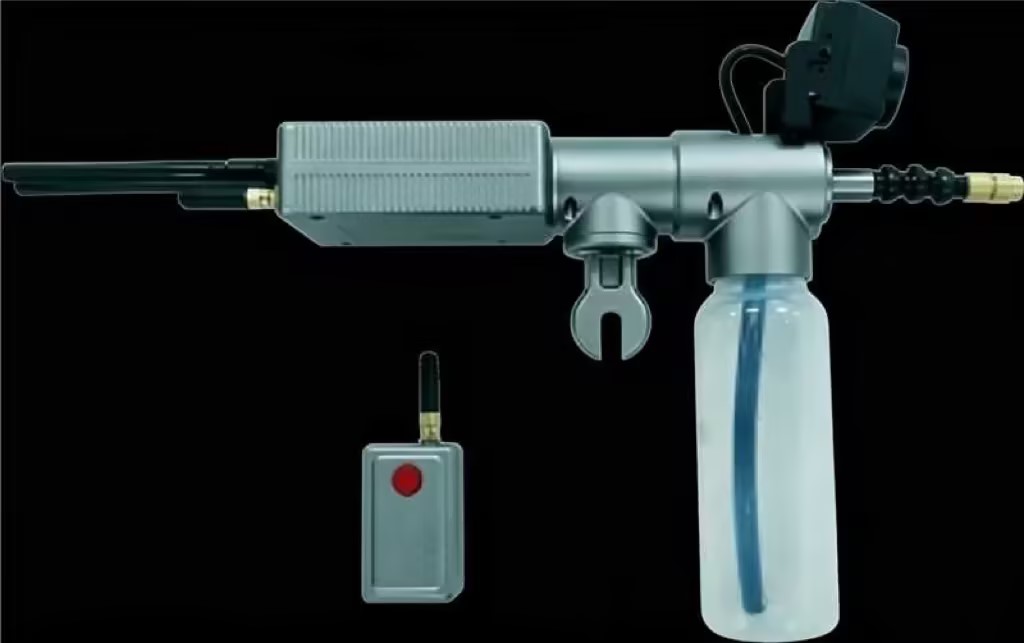

HB-HCA16 Insulator Hydrophobicity Live Detection Device

Features or Overview

1. Detect various composite insulators with electric charge, and test the hydrophobicity of silicone rubber and RTV coating materials.

2. Wirelessly remote control the electric water spraying part to automatically spray water, and the electric water spraying part automatically performs rapid and precise atomization spraying, ensuring the safety of the operator.

3. Obtain high-definition hydrophobicity images through high-definition imaging, and the analysis system calculates based on the information from the hydrophobicity images to automatically determine the hydrophobicity level.

4. The hydrophobicity analysis software has functions such as automatically and accurately analyzing the hydrophobicity level, recording various data and graphics from each test, and being able to query the test records for each test and each string of insulators.

Composite Insulator Hydrophobicity Live Detection Device, with simple structure, convenient operation and accurate judgment, is suitable for measuring the hydrophobicity of the umbrella and umbrella sleeve materials of composite insulators used in overhead lines, substations and electrical equipment. It is also suitable for measuring the hydrophobicity of porcelain insulators covered with RTV coatings (paint).

Specifications

Test Method

Test Method: Spray Water Classification Method (HC Classification Method)

Electric Sprayer

Operating Frequency Band: 2.4G
Remote Control Distance: More than 100m
Remote Control Power Supply: 1 3.6V Lithium Battery
Receiving Angle: 360°
Flow Rate: 0.6L/min@3bar
Spray Angle: 30°@3bar
Jet Angle: 50-80°
Single Spray Volume: 0.7mL～1mL
Single Measurement Spraying Times: 25 times
Total Water Volume Sprayed: 17～25mL
Device Power Supply: 12V 2000mAh lithium battery, a single charge can ensure continuous spraying for 2 hours, capable of completing over 100 measurements
Water Storage Bottle Capacity: 250ml

Image Acquisition Device

Imaging Terminal: Dedicated Camera
Pixel: 8 million
Image Format: JPEG
Antenna: Directional, non-bendable, 5dB omnidirectional gain
Terminal Fixing Method: Adjustable universal joint
Communication Method: WiFi Hotspot, Wireless Connection
Transmission Distance: Within 50 meters
Active Angle: Adjustable up and down

Analysis Software

Hydrophobicity Analysis Software: Process images after spraying water to determine the static contact angle represented by the shape of water droplets in the image and the hydrophobic level of the insulator, supporting manual and automatic analysis

Insulated Operating Rod
