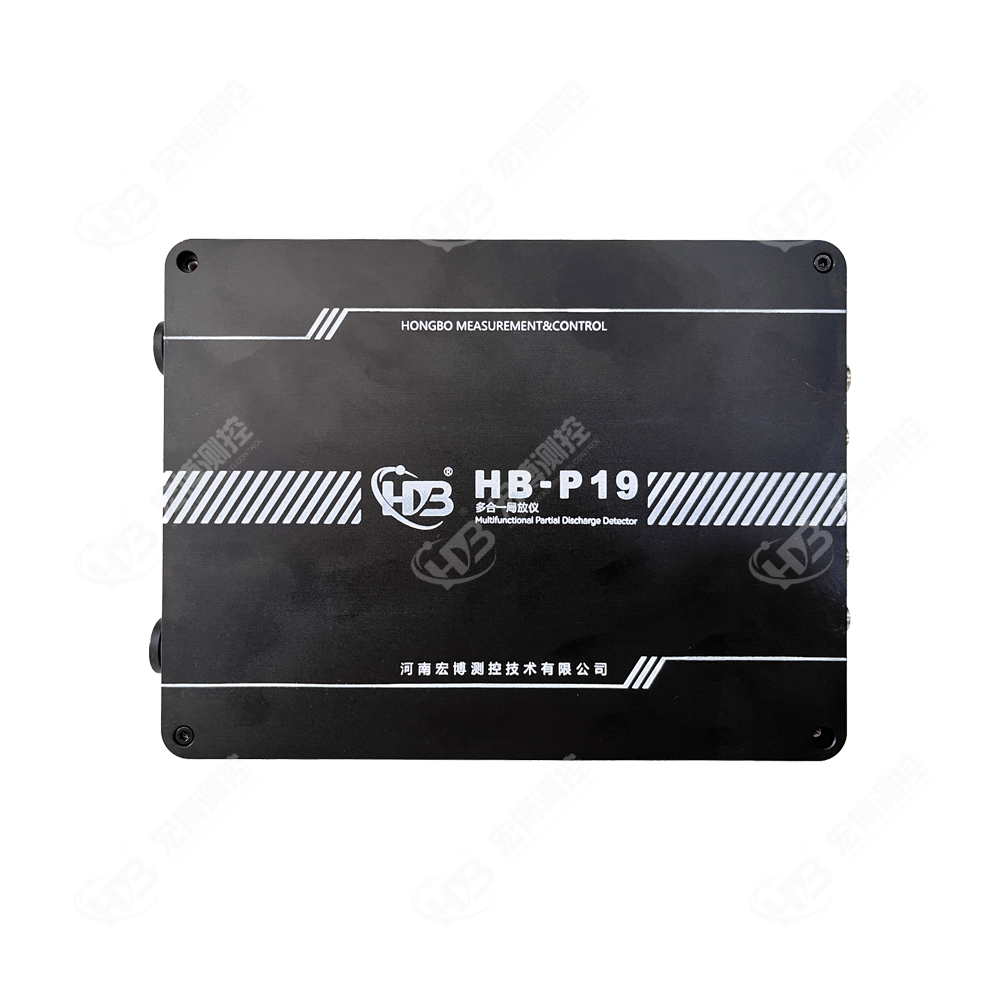

HB-P19 Multi-function Partial Discharge Detector
1. Portable partial discharge signal processing host, data can be transmitted wirelessly to a handheld terminal.
2. The data acquisition host can be configured with 5 different sensors and can automatically generate inspection reports, which can be uploaded to a data management platform.

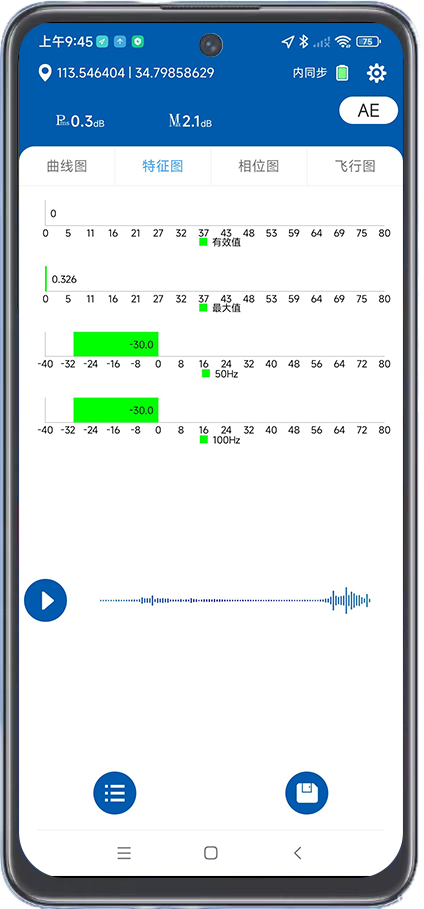

3. The software system can display gradient spectra, curve spectra, characteristic spectra, phase spectra, etc., for over-limit alarms; the software uses red and yellow gradient color indication methods.
4. The handheld device is equipped with intelligent analysis software to comprehensively collect on-site operation data.

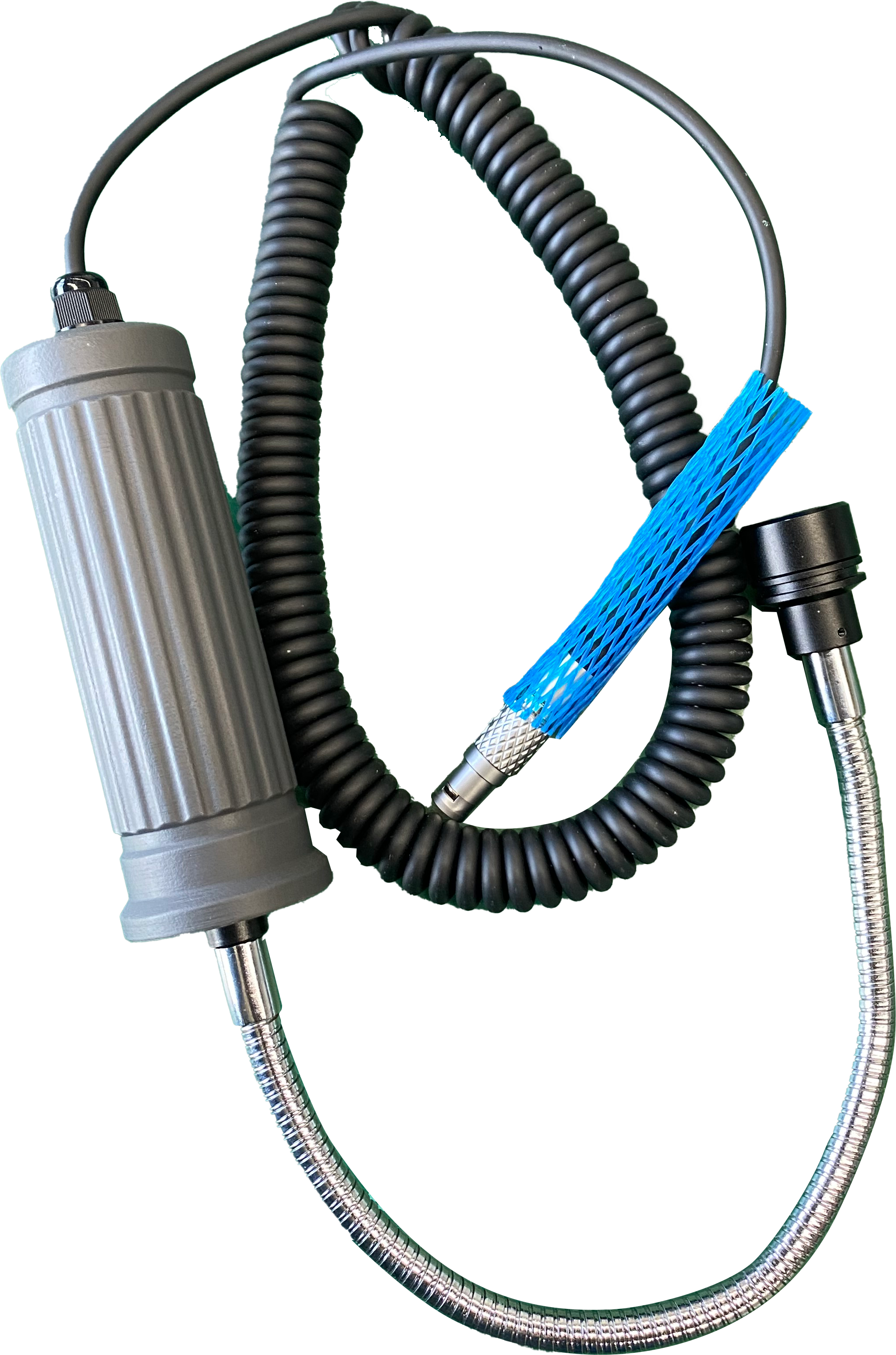

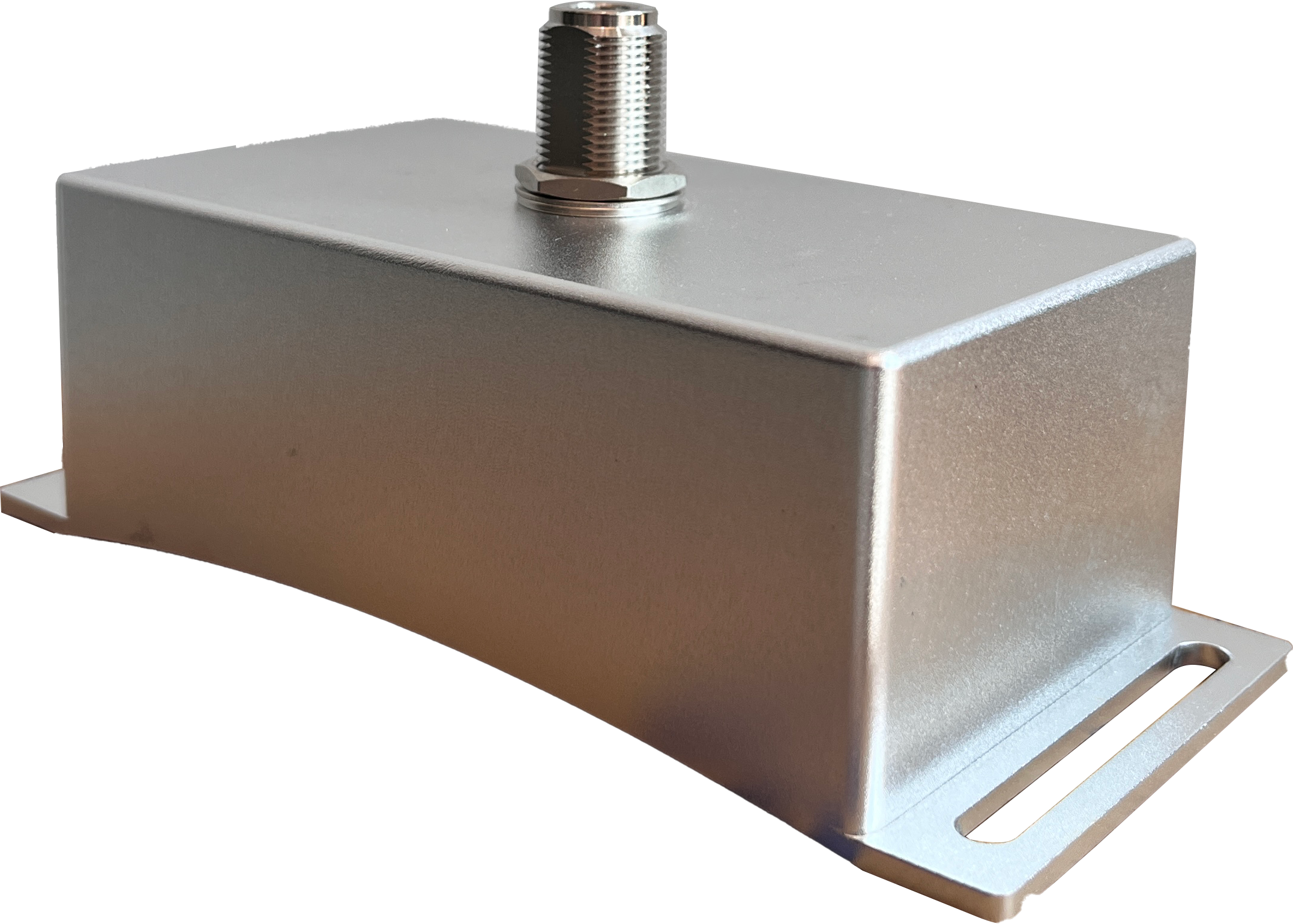

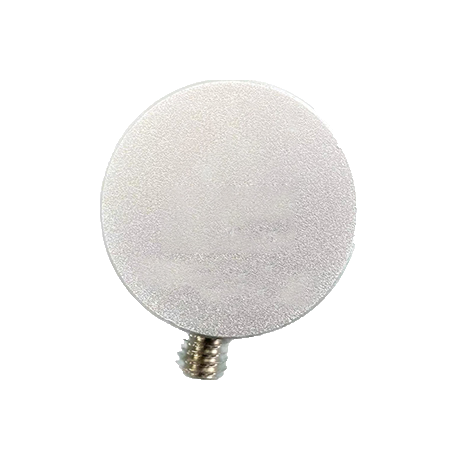

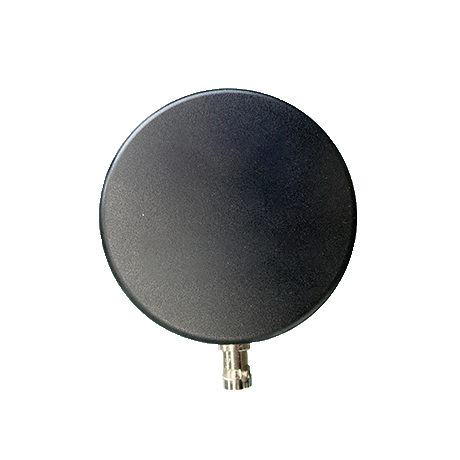

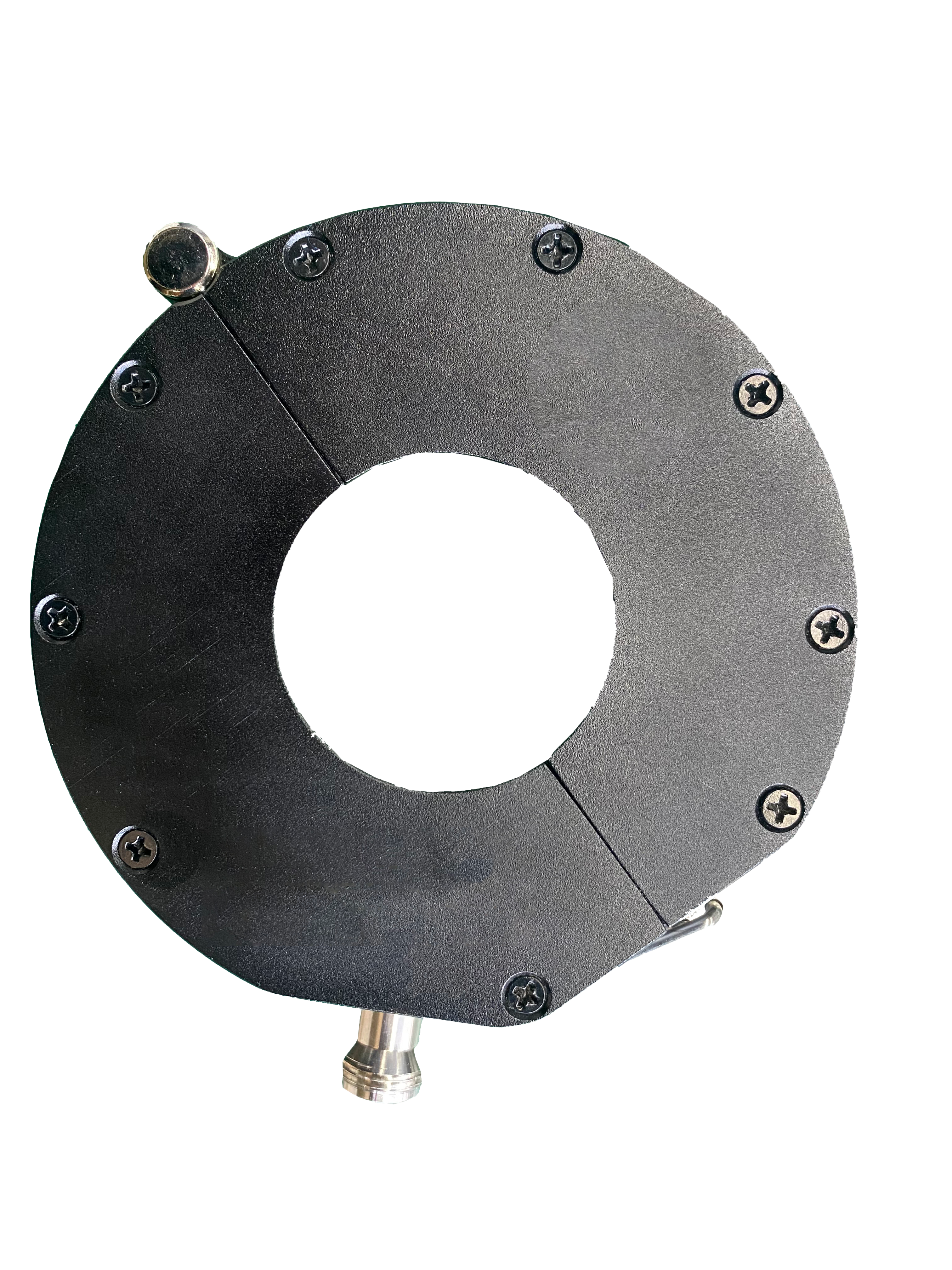

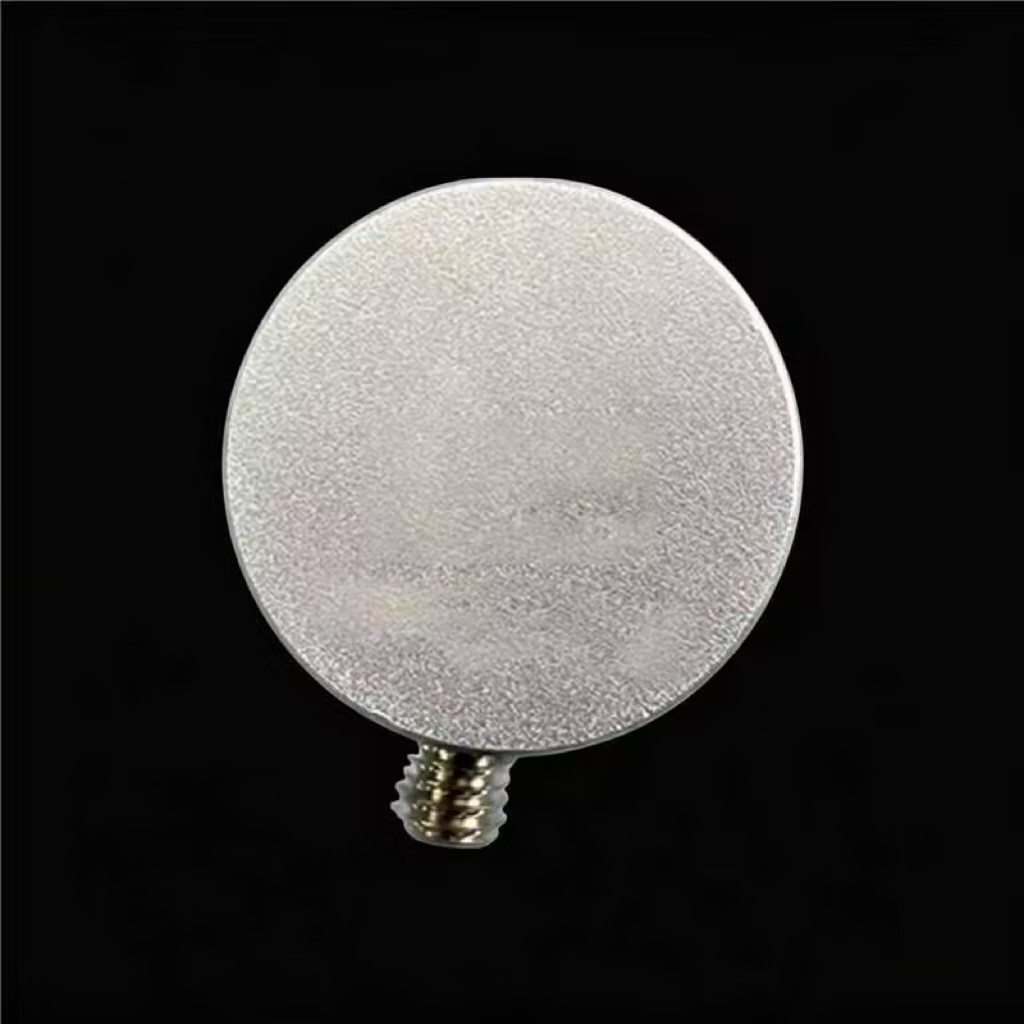

The instrument is equipped with five types of detection sensors, including contact ultrasonic, non-contact ultrasonic, transient earth voltage, high frequency current, and ultra high frequency, suitable for partial discharge detection of power equipment such as transformers, GIS, switchgear, ring main units, cable distribution boxes, power cables and their accessories, reactors, and rotating machines.
Specifications
- Main Board
- FPGA
- CPU Frequency
- 1.2 GHz
- Wireless Network Interface
- Bluetooth: 4.2/2.4G
- Dimensions
- 227 x 154 x 59 (mm)
- Measurement Range
- 0～60 dB
- Center Frequency
- 40 kHz
- Sensor Frequency Bandwidth
- 30 kHz～140 kHz
- Peak Frequency
- 20 kHz～80 kHz
- Measurement Range
- 0～60 dB
- Bandwidth
- 3 MHz～100 MHz
- Measurement Range
- 0～60 dB
- Detection Bandwidth
- 3 MHz～30 MHz
- Measurement Range
- -30 dBV～34 dBV
- Discharge Quantity Measurement Range
- 50 pC～5000 pC
- Sensitivity
- 50 pC
- Detection Bandwidth
- 300 MHz～1500 MHz
- Average Effective Height
- ≥10mm
- Measurement Range
- -75 dBm～0 dBm
- Protection Rating
- IP51
- Power Supply
- Lithium battery powered, can work continuously for more than 4 hours, power consumption <10 W
