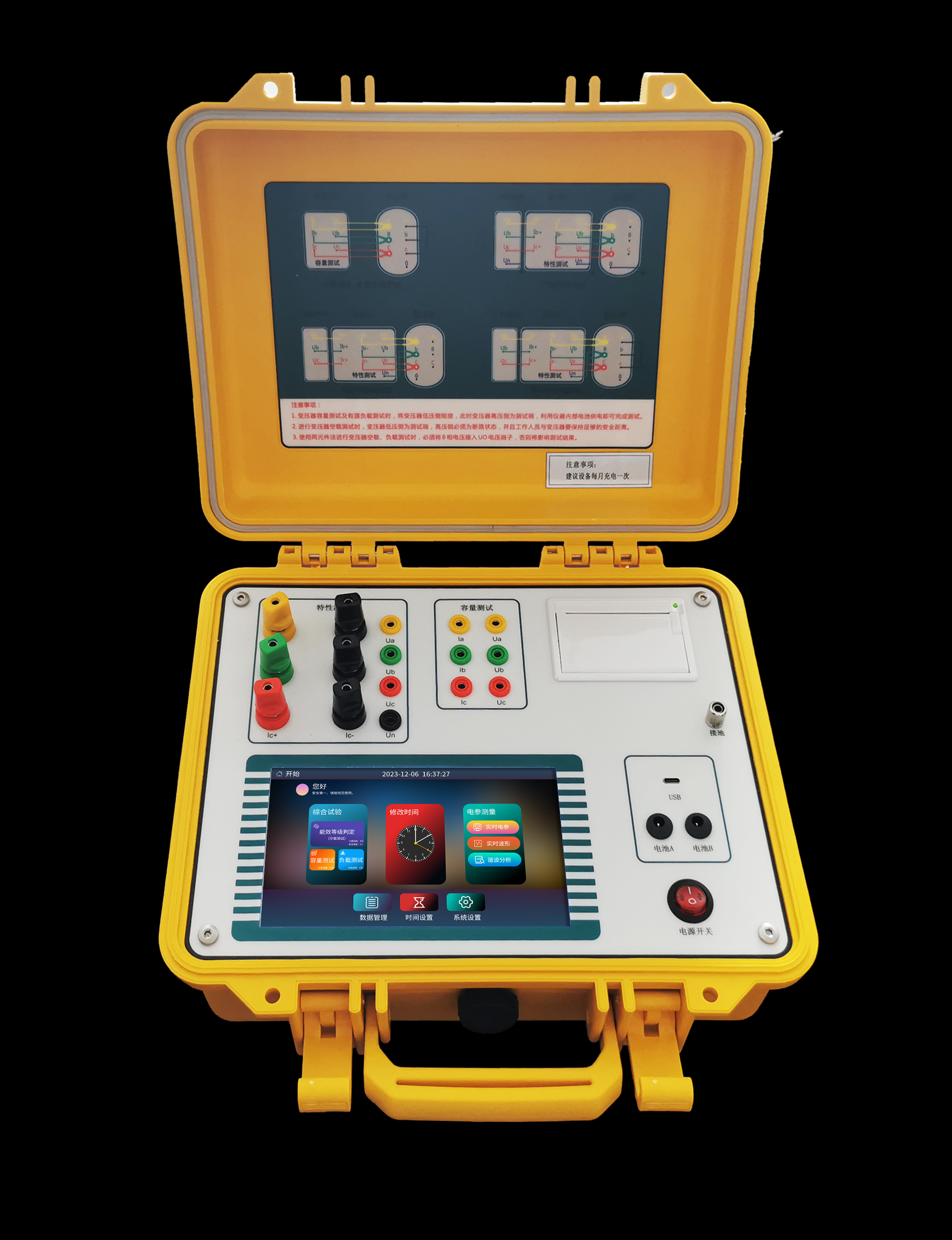

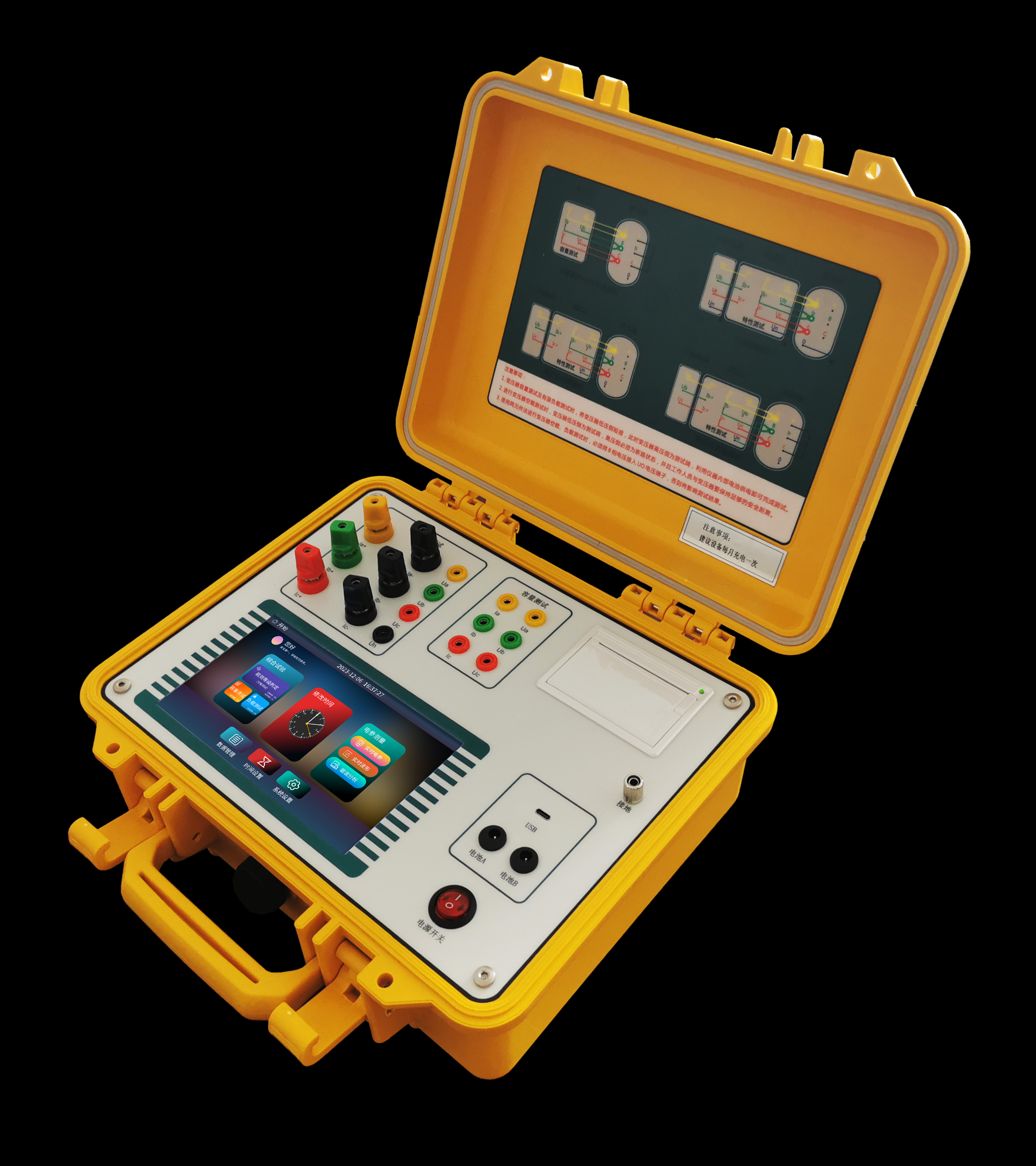

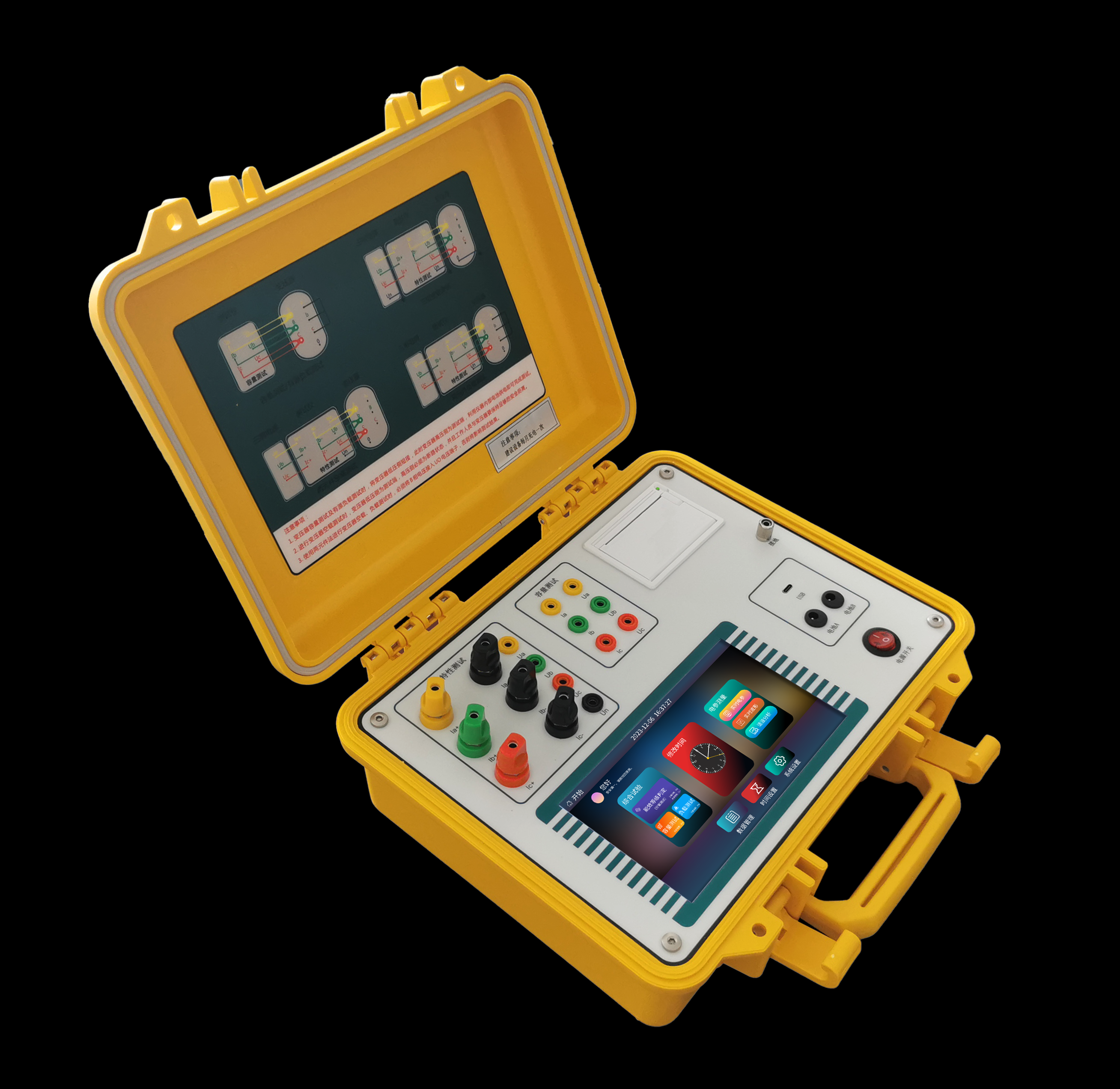

HB-RLZ506 Transformer Capacity Tester

Features or Overview

7-inch color high-brightness LCD touchscreen with an Android-style interface, Chinese input, and fully Chinese menu
Comes with comprehensive electronic help, wiring diagrams and textual descriptions for all operations, making the operation intuitive and simple. It also has the function of remote program upgrades, allowing the instrument's program to be upgraded remotely as required
Standard equipped with specially designed low-voltage shorting leads, no screws or wrenches needed, making on-site testing more convenient
Can measure various transformer capacities on-site without needing an additional power supply, making detection more convenient and faster
All test results are automatically corrected. It can automatically determine the performance level of three-phase oil-immersed transformers, providing staff with reference on-site

This instrument includes functions for determining transformer capacity, transformer no-load loss, transformer load loss, and their corresponding level codes. The instrument is equipped with a high-capacity rechargeable battery inside, allowing it to operate without an external power supply. A full charge of the battery can continuously measure more than 100 sets of transformers. In addition, the instrument provides a three-phase precision 50Hz sine wave AC test power source internally. When measuring transformer capacity and transformer load loss, there is no need to connect an external three-phase test power source or auxiliary equipment such as voltage regulators or current boosters, thus greatly improving your work efficiency.

Specifications

Built-in power supply
