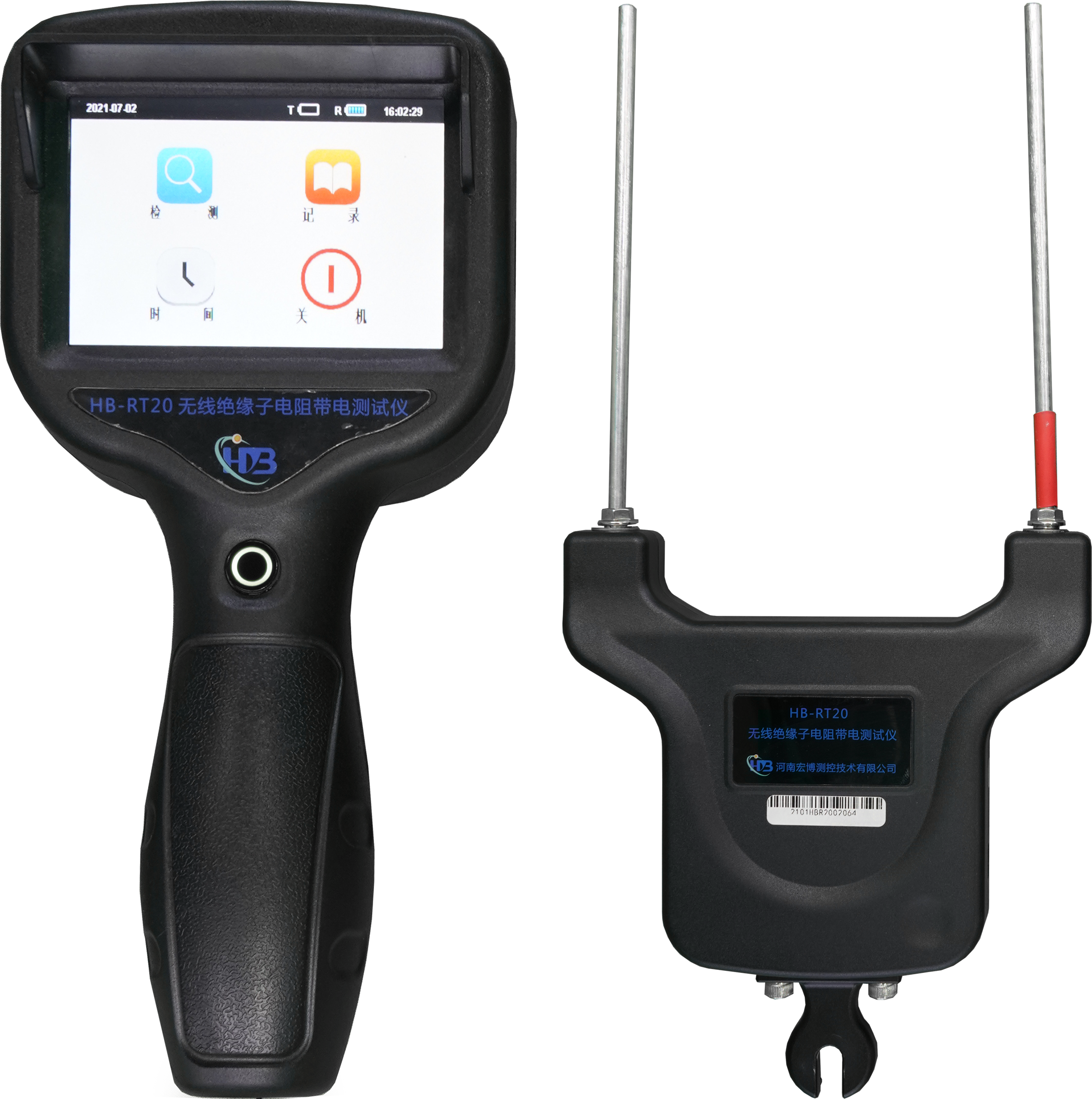

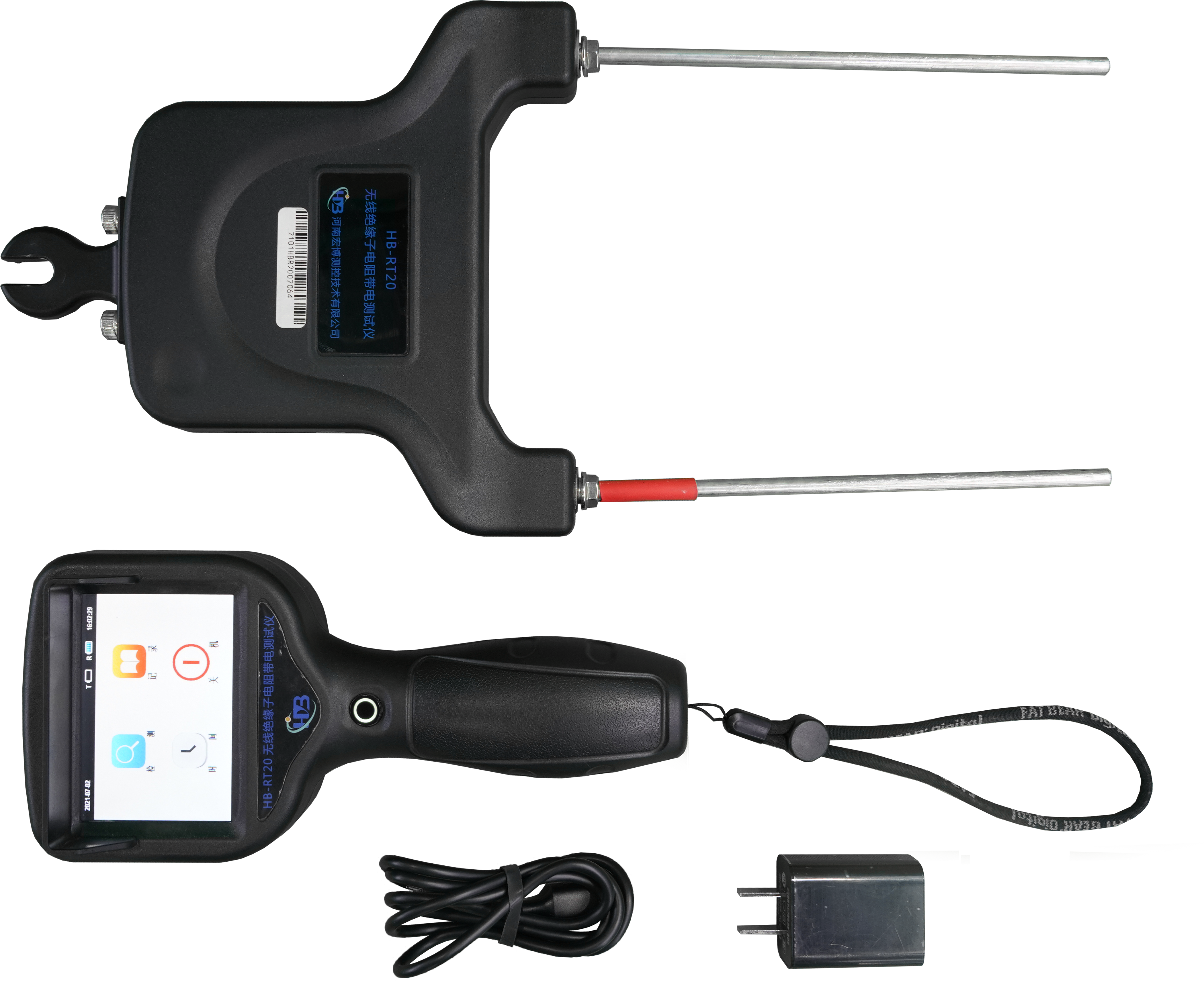

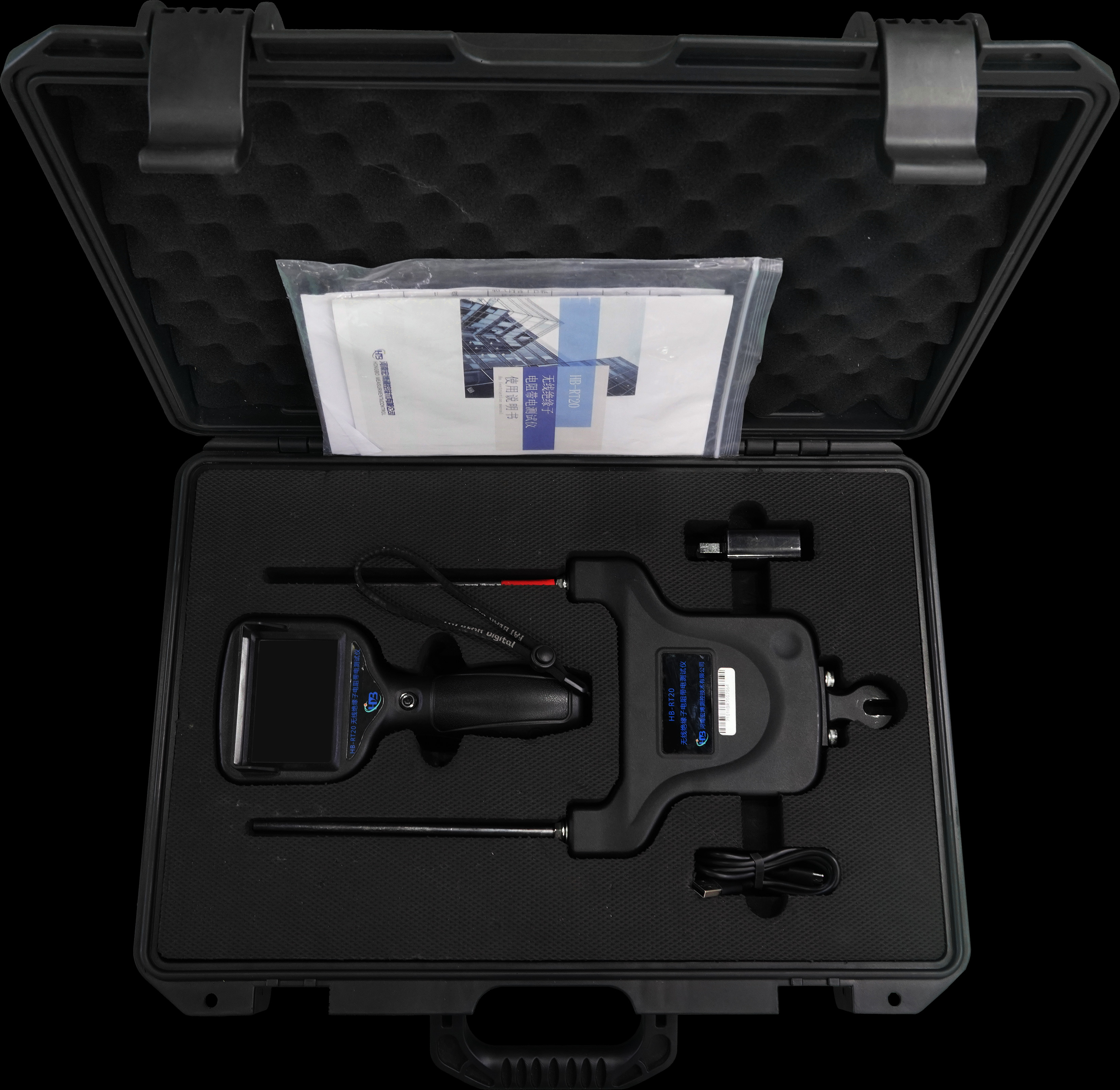

HB-RT20 Wireless Insulator Resistance Live Testing Kit
1. The instrument can measure the insulation resistance of insulators whether there is a power outage or not, making the testing method more flexible and the application more widespread.
2. It supports long-distance data transmission. Data transmission between the detection transmitter and the handheld receiver is conducted via radio frequency, making the testing process more convenient and efficient.
3. It has an automatic audio-visual alarm function. When the measured value is below 500MQ, the instrument will automatically emit a beeping sound of "beep, beep, beep" and the alarm indicator light on the handheld receiver will illuminate.
4. It automatically counts the number of pieces in each string based on the test data, stores the measurement results for each piece, and can save the measurement results to a USB drive for easy future retrieval.
5. It supports viewing and analyzing historical data. Historical data stored on the USB drive can be viewed on the handheld receiver, and the proportion of deteriorated insulator pieces in the entire string can be analyzed.
The instrument features high measurement accuracy, a wide measurement range, convenient portability, and simple operation, making it very suitable for the fast and accurate measurement of insulation resistance of disc-shaped suspension insulators in operation.
Specifications
- Power Outage
- 10kV~1000kV Disc Suspension Porcelain Insulators
- Live
- 35kV~330kV Disc Suspension Porcelain Insulators
- Test Voltage
- DC 3000V
- Measurement Range
- 50~3000MΩ
- Measurement Error
- ±5%+10MΩ
- Display Method
- 3.5-inch Touch Screen
- Communication Method
- RF, Transmission Distance Not Less Than 100m
- Power
- 3.7V Rechargeable Lithium Battery
- Standby Time
- ≥8h
