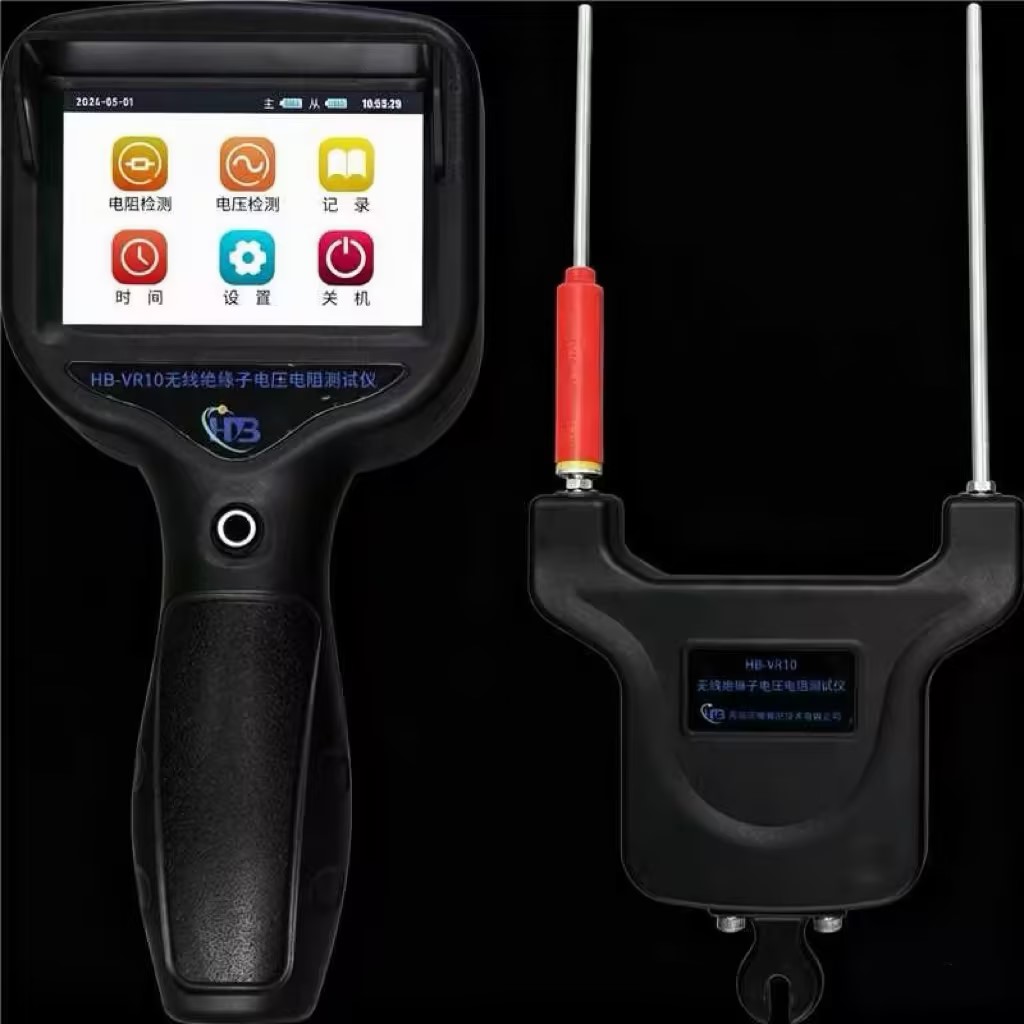

HB-VR10 Wireless Insulator Voltage Resistance Tester

Features or Overview

1. The instrument has high voltage withstand capability and employs anti-interference technology to measure the distributed voltage across both ends of the insulator disc without power interruption.

2. It supports long-distance data transmission. Data transmission between the detection transmitter and the handheld receiver is conducted via radio frequency, making the inspection process more convenient and efficient.

3. The detection transmitter can be connected to the insulated operating rod by adjusting the bayonet connector, meeting different measurement requirements for angles such as tension and suspension.

4. It automatically counts the number of discs in each string based on the detection data, stores the measurement results for each disc, and can save the measurement results to a USB drive for easy future retrieval.

5. It supports viewing and analyzing historical data, allowing users to check historical data on the handheld receiver.

This insulator testing instrument is a specialized measuring device for measuring the distributed voltage of insulators under energized conditions and for testing the resistance value of insulators after de-energization. It can accurately and quantitatively measure the distributed voltage at both ends of each insulator without interrupting power supply, as well as measure the resistance value of the insulator after power is turned off. It is very suitable for rapid and precise field testing of the distributed voltage and insulation resistance of disc-shaped suspension insulators.

Specifications

Application Scope

Power Outage: Zero-value Detection of 10kV～1000kV Disc Suspension Ceramic Insulators
Live-line: Voltage Distribution Detection of 35kV～500kV Disc Suspension Ceramic Insulators

Voltage
